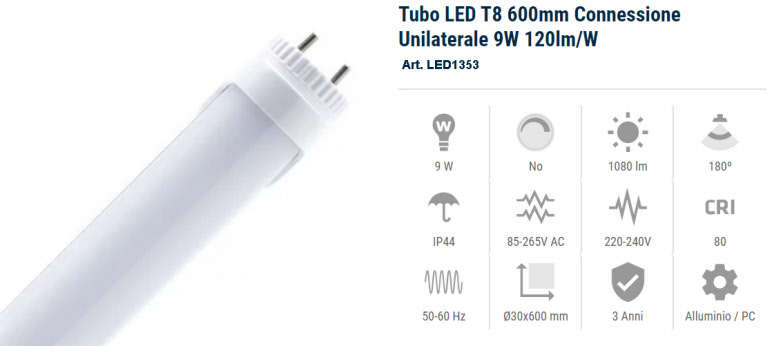

600mm 9W T8 LED Tube with One Side Power (120lm/W)

Description

This 600mm 9W T8 LED Tube with One Side Power is perfect for swapping conventional fluorescent tubes in your home or business.

The 900 lumens provided by its SMD2835 light source are enough to replace fluorescent tubes of up to 20W. This efficiency provides us with savings of up to 50% when compared with previous technology. The beam angle is 180º and this 600mm 9W T8 LED Tube with One Side Power comes in a translucent cover with a rotary head.

It's connected at one end (at the end that says input) and its direct connection to the mains allows us to remove the additional consumption of ballasts and starters, allowing for longer durability and less maintenance. Turning this 600mm 9W T8 LED Tube with One Side Power On provides instant power and the unit does not flicker. Its heat sink is made of pure aluminium.

* See Press "MORE" below the photo to see the LED Tubes Installation Guide (bilateral connection)

Characteristics

Beam Angle:

180º

Life Span:

30,000 Hours

Power Factor:

0.93

Certifications:

CE & RoHS

Energy Class:

A+

Dimmable:

No

Size:

Ø30x600 mm

IP Protection:

IP44

Light Source:

Epistar-SMD2835

Multi-Voltage:

85-265V AC

Material:

Aluminium / PC

Power:

9 W

Frequency:

50-60 Hz

Voltage:

AC 220-240V

Lumens:

1080 lm

Working Temperature:

-20ºC ~ 45ºC

Lens Type:

Frost

Screw:

T8

LED Performance:

120 lm/W

CRI:

80

Length:

600 mm

Warranty:

5 Years



T8 LED Tube Installation

How to connect an LED tube with one side connection eliminating Ferromagnetic/Electronic ballast

Connecting these tubes requires the re-wiring of the fluorescent lamp as follows: The ballast, the starter and the two mains cables are removed and plugged directly into the two pins at one end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the ballast and starter.

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tubes one-side with LED starter Ferromagnetic/Electronic ballasts

Ferromagnetic fluorescent tube systems have the starter positioned outside the ballast. Alternatively, it is possible to install the LED tubes using the LED starter (included in the product). The connection of these lamps are simple, you only need to change the starter for a LED starter, the fluorescent tube for the LED tube, modify a connection and remove the capacitor* (if available, part1.b).

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 1.b
Remove the capacitor.

LED Tube Installation - Part 1.b

Part 2
Connect Ballast and Led Starter.

LED Tube Installation - Part 2

Part 3
Replace the starter with the LED starter and the fluorescent tube with the LED tube. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tube with two-sided connection eliminating Ferromagnetic/Electronic ballast

Connecting these lamps requires the re-wiring of fluorescent lamp as follows: Remove the ballast, and the starter, and connect the two power cables directly to one of the two sockets at each end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the fluorescent tube, join the two wires that feed into the ballast in the same contact and remove the starter (by cutting one of the starter wires, the starter is completely annulled).

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up. Congratulations, you are using half as much electricity as 5 minutes ago!

LED Tube Installation - Part 3
