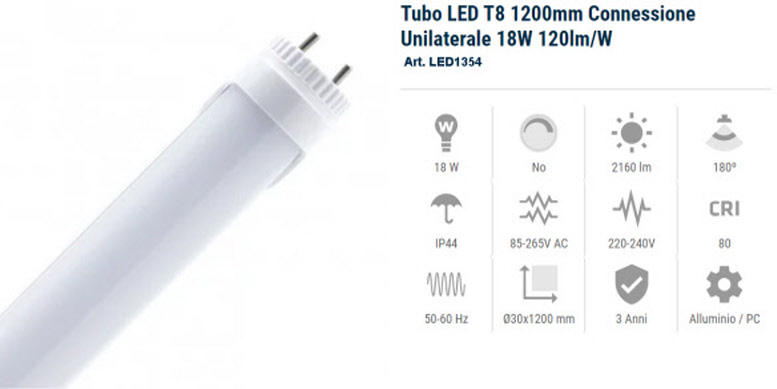

1200mm 18W T8 LED Tube with One Side Power (120lm/W)

Description

This 1200mm 18W T8 LED Tube with One Side Power is perfect for replacing common fluorescent tubes, like for example, in kitchens.

Its Epistar-SMD2835 light source and provide us with a total brightness of 1,800 lumens, which are more than enough to replace fluorescent tubes of up to 40W, acheiving energy savings of over 50%. The beam angle of the light is 180º, which is perfect for general lighting. It also features a frosted diffuser and a rotary head.

The connection of this 1200mm (4ft) 18W T8 LED Tube with One Side Power is done to one side (the end that says 'input'). It works at 220-240V AC, so we can eliminate the ballast and starter, optimizing consumption.

Get this 1200mm 18W T8 LED Tube with One Side Power and enjoy instant lighting and annoying light flickering.

* See Press "MORE" below the photo to see the LED Tubes Installation Guide (bilateral connection)

Characteristics

Beam Angle:

180º

Life Span:

30,000 Hours

Power Factor:

0.93

Certifications:

CE & RoHS

Energy Class:

A+

Dimmable:

No

Size:

Ø30x1200 mm

IP Protection:

IP44

Light Source:

Epistar-SMD2835

Multi-Voltage:

85-265V AC

Material:

Aluminium / PC

Power:

18 W

Frequency:

50-60 Hz

Voltage:

AC 220-240V

Lumens:

2160 lm

Working Temperature:

-20ºC ~ 45ºC

Lens Type:

Frost

Screw:

T8

LED Performance:

120 lm/W

CRI:

80

Length:

1200 mm

Warranty:

5 Years



T8 LED Tube Installation

How to connect an LED tube with one side connection eliminating Ferromagnetic/Electronic ballast

Connecting these tubes requires the re-wiring of the fluorescent lamp as follows: The ballast, the starter and the two mains cables are removed and plugged directly into the two pins at one end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the ballast and starter.

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tubes one-side with LED starter Ferromagnetic/Electronic ballasts

Ferromagnetic fluorescent tube systems have the starter positioned outside the ballast. Alternatively, it is possible to install the LED tubes using the LED starter (included in the product). The connection of these lamps are simple, you only need to change the starter for a LED starter, the fluorescent tube for the LED tube, modify a connection and remove the capacitor* (if available, part1.b).

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 1.b
Remove the capacitor.

LED Tube Installation - Part 1.b

Part 2
Connect Ballast and Led Starter.

LED Tube Installation - Part 2

Part 3
Replace the starter with the LED starter and the fluorescent tube with the LED tube. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tube with two-sided connection eliminating Ferromagnetic/Electronic ballast

Connecting these lamps requires the re-wiring of fluorescent lamp as follows: Remove the ballast, and the starter, and connect the two power cables directly to one of the two sockets at each end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the fluorescent tube, join the two wires that feed into the ballast in the same contact and remove the starter (by cutting one of the starter wires, the starter is completely annulled).

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up. Congratulations, you are using half as much electricity as 5 minutes ago!

LED Tube Installation - Part 3
