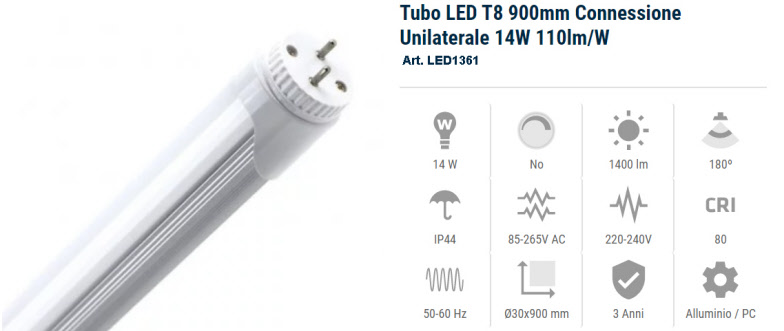

900mm 14W T8 LED Tube with One Side Power (110lm/W)

Description

This T8 LED Tube has one side power and an SMD2835 light source. It comes in a translucent cover and has a rotary head, capable of being connected directly to the mains and removing the residual consumption of ballasts and starters, meaning that this tube lasts longer and needs less maintenance. It provides instant, full light, doesn’t flicker, it has a pure aluminium heat sink, it doesn’t make sounds and it's shock resistant.

* See Press "MORE" below the photo to see the LED Tubes Installation Guide (bilateral connection)

Characteristics

Beam Angle:

180º

Life Span:

30,000 Hours

Power Factor:

0.93

Certifications:

CE & RoHS

Energy Class:

A+

Dimmable:

No

Size:

Ø30x900 mm

IP Protection:

IP44

Light Source:

Epistar-SMD2835

Multi-Voltage:

85-265V AC

Material:

Aluminium / PC

Power:

14 W

Frequency:

50-60 Hz

Voltage:

AC 220-240V

Lumens:

1400 lm

Working Temperature:

-20°C ~ +40°C

Lens Type:

Frost

Screw:

T8

CRI:

80

Length:

900 mm

Warranty:

5 Years



T8 LED Tube Installation

How to connect an LED tube with one side connection eliminating Ferromagnetic/Electronic ballast

Connecting these tubes requires the re-wiring of the fluorescent lamp as follows: The ballast, the starter and the two mains cables are removed and plugged directly into the two pins at one end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the ballast and starter.

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tubes one-side with LED starter Ferromagnetic/Electronic ballasts

Ferromagnetic fluorescent tube systems have the starter positioned outside the ballast. Alternatively, it is possible to install the LED tubes using the LED starter (included in the product). The connection of these lamps are simple, you only need to change the starter for a LED starter, the fluorescent tube for the LED tube, modify a connection and remove the capacitor* (if available, part1.b).

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 1.b
Remove the capacitor.

LED Tube Installation - Part 1.b

Part 2
Connect Ballast and Led Starter.

LED Tube Installation - Part 2

Part 3
Replace the starter with the LED starter and the fluorescent tube with the LED tube. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tube with two-sided connection eliminating Ferromagnetic/Electronic ballast

Connecting these lamps requires the re-wiring of fluorescent lamp as follows: Remove the ballast, and the starter, and connect the two power cables directly to one of the two sockets at each end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the fluorescent tube, join the two wires that feed into the ballast in the same contact and remove the starter (by cutting one of the starter wires, the starter is completely annulled).

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up. Congratulations, you are using half as much electricity as 5 minutes ago!

LED Tube Installation - Part 3
