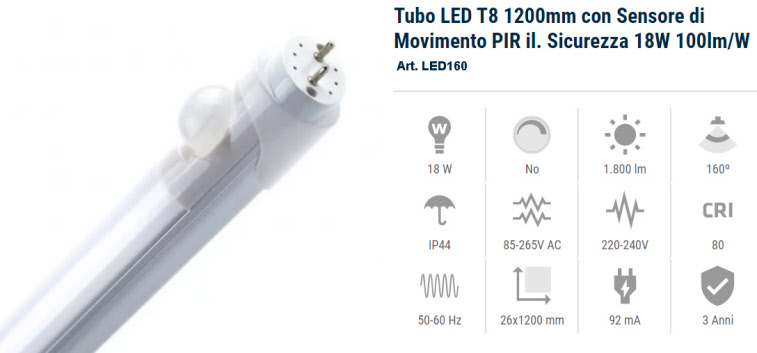

1200mm (4ft) 18W T8 LED Tube with PIR Motion Detection for Security Lighting (100lm/W)

Description

This 1200mm (4ft) 18W T8 LED Tube with PIR Motion Detection for Security Lighting is perfect for automatic lighting in spaces in which we don't want to be left in the dark.

It has a 1,800 lumen brightness, equal to a 40W fluorescent tube, and a 30,000 ghour working life. It features a translucid finish that projects light in a very pleasant semi-difussed manner.

This 1200mm (4ft) 18W T8 LED Tube captures invisible infrared emissions produced by people and other heat sources without emitting radiation. It's activated when a heat source moves in front of the switch and reduces its brightness by approximately 20%, once the heat source is no longer captured, which occurs after 30 to 40 seconds. For the sensor to correctly work, we recommend installing the unit in open luminaires.

It's no longer necessary that we look for the light switch to turn on our tubes thnks to this 1200mm (4ft) 18W T8 LED Tube with PIR Motion Detection for Security Lighting, available here at LEDKIA, our online lighting shop.

These tubes are not one-side powered. Connect at both ends.

The 85V-265V AC Multi-Voltage refers to peaks and drops. The tubes cannot continuously function at these voltages.

* See Press "MORE" below the photo to see the LED Tubes Installation Guide (bilateral connection)

Characteristics

Beam Angle:

160º

Power Factor:

0.90

Life Span:

30,000 Hours

Certifications:

CE & RoHS

Energy Class:

A+

Dimmable:

No

Size:

26x1200 mm

IP Protection:

IP44

Light Source:

SMD3014

Colour Temp:

6000-6500k

Multi-Voltage:

85-265V AC

Material:

Aluminium / PC

Power:

18 W

Frequency:

50-60 Hz

Voltage:

AC 220-240V

Lumens:

1.800 lm

Light Colour:

Cool White

Working Temperature:

-20ºC ~ +45ºC

Screw:

T8

Lens Type:

Frost

Intensity Level:

92 mA

CRI:

80

Length:

1200 mm

Special:

Detector

Motion Detector:

PIR

Warranty:

5 Years

T8 LED Tube Installation

How to connect an LED tube with one side connection eliminating Ferromagnetic/Electronic ballast

Connecting these tubes requires the re-wiring of the fluorescent lamp as follows: The ballast, the starter and the two mains cables are removed and plugged directly into the two pins at one end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the ballast and starter.

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tubes one-side with LED starter Ferromagnetic/Electronic ballasts

Ferromagnetic fluorescent tube systems have the starter positioned outside the ballast. Alternatively, it is possible to install the LED tubes using the LED starter (included in the product). The connection of these lamps are simple, you only need to change the starter for a LED starter, the fluorescent tube for the LED tube, modify a connection and remove the capacitor* (if available, part1.b).

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 1.b
Remove the capacitor.

LED Tube Installation - Part 1.b

Part 2
Connect Ballast and Led Starter.

LED Tube Installation - Part 2

Part 3
Replace the starter with the LED starter and the fluorescent tube with the LED tube. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tube with two-sided connection eliminating Ferromagnetic/Electronic ballast

Connecting these lamps requires the re-wiring of fluorescent lamp as follows: Remove the ballast, and the starter, and connect the two power cables directly to one of the two sockets at each end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the fluorescent tube, join the two wires that feed into the ballast in the same contact and remove the starter (by cutting one of the starter wires, the starter is completely annulled).

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up. Congratulations, you are using half as much electricity as 5 minutes ago!

LED Tube Installation - Part 3
