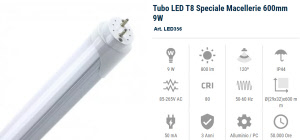

600mm (2ft) 9W T8 LED Tube Especially for Butchers

Description

This 600mm (2ft) 9W T8 LED Tube Especially for Butchers provides a brightness of 800 lumens and has a working life of approximately 50,000 hours. Featuring a translucent cover that offers pinkish light, especially designed for lighting fridges or any other installation which lights food.

Traditional fluorescent lighting consumes 50% more energy and emits many green and yellow wavelengths and few red and blue wavelengths, which negatively affects the colour of meat, which goes from red to brown. The fat can turn from white to yellowish or green. This is why T8 LED Tubes Especially for Butchers are used, as their light makes food products seem more appealing to the eye.

This T8 LED Tube uses SMD2835 technology and has an IP44 Protection factor, which allows us to use it between -20ºC and +50ºC.

By purchasing this product here you'll get a five year warranty.

The 85V-265V AC Multi-Voltage refers to peaks and drops. The tubes cannot continuously function at these voltages.

* See Press "MORE" below the photo to see the LED Tubes Installation Guide (bilateral connection)

Characteristics

Beam Angle:	120º
Power Factor:	0.90
Life Span:	50,000 Hours
Energy Class:	A+
Certifications:	CE & RoHS
Size:	Ø(29x32)x600 mm
IP Protection:	IP44
Light Source:	SMD 2835
Multi-Voltage:	85-265V AC
Material:	Aluminium / PC
Power:	9 W
Frequency:	50-60 Hz
Lumens:	800 lm
Working Temperature:	-20°C ~ 50°C
Lens Type:	Frost
Intensity Level:	50 mA
CRI:	80
Length:	600 mm
Warranty:	5 Years

T8 LED Tube Installation

How to connect an LED tube with one side connection eliminating Ferromagnetic/Electronic ballast

Connecting these tubes requires the re-wiring of the fluorescent lamp as follows: The ballast, the starter and the two mains cables are removed and plugged directly into the two pins at one end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the ballast and starter.

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tubes one-side with LED starter Ferromagnetic/Electronic ballasts

Ferromagnetic fluorescent tube systems have the starter positioned outside the ballast. Alternatively, it is possible to install the LED tubes using the LED starter (included in the product). The connection of these lamps are simple, you only need to change the starter for a LED starter, the fluorescent tube for the LED tube, modify a connection and remove the capacitor* (if available, part1.b).

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 1.b
Remove the capacitor.

LED Tube Installation - Part 1.b

Part 2
Connect Ballast and Led Starter.

LED Tube Installation - Part 2

Part 3
Replace the starter with the LED starter and the fluorescent tube with the LED tube. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tube with two-sided connection eliminating Ferromagnetic/Electronic ballast

Connecting these lamps requires the re-wiring of fluorescent lamp as follows: Remove the ballast, and the starter, and connect the two power cables directly to one of the two sockets at each end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the fluorescent tube, join the two wires that feed into the ballast in the same contact and remove the starter (by cutting one of the starter wires, the starter is completely annulled).

LED Tube Installation - Part 2
