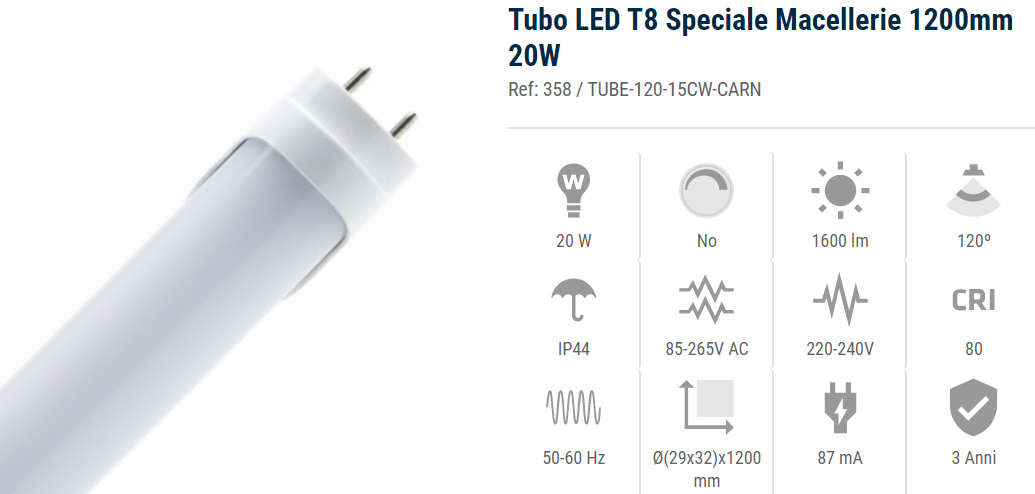

1200mm (4ft) 20W T8 LED Tube Especially for Butchers

Description

This 1200mm (4ft) 20W T8 LED Tube Especially for Butchers is the best option for presenting meat products and bringing out their colour, texture and quality, both in fridges and any other installations which display these types of food.

Characteristics of this 1200mm (4ft) 20W T8 LED Tube Especially for Butchers

With 100x high efficiency SMD2835 LEDs with a 80 lm/W performance, this tube emits 1,600 lumens, which is equivalent to a 40W fluorescent tube, meaning we're saving 50% in energy. Thanks to a translucent finish and a wide 120º angle, it provides very pleasant and homogeneous light.

This 1200mm (4ft) 20W T8 LED Tube Especially for Butchers is made from aluminium and PC, which provide high resistance and durability. With IP44 Protection, it can work between -20ºC and +50ºC, with a long 50,000 hour working life, approximately.

Advantages of this 1200mm (4ft) 20W T8 LED Tube Especially for Butchers

The main advantage with LED tubes is that they bring out all the characteristics of meat products without them losing their natural look, making them more appealing to the eye. This is due to the pink light that's been conceived especially for this type of LED lighting, which is achieved by directly modifying the light emitted without using additional filters. Also, as it doesn't include contaminating substances it's much safer.

Traditional fluorescent lighting emits high levels of green and yellow wavelengths, but very few blue and red wavelengths, which negatively affects the colour of meat, which goes from red to brown, while white fat goes to a yellow or green colour.

Make the most of the advantages offered by this 1200mm (4ft) 20W T8 LED Tube Especially for Butchers and present products how they deserve to be presented.

The 85V-265V AC Multi-Voltage refers to peaks and drops. The tubes cannot continuously function at these voltages.

* Vedi Pigiare "PIU' sotto la foto per vedere la Guida all'Installazione dei tubi LED (connessione bilaterale)

Characteristics

Beam Angle:

120º

Life Span:

50,000 Hours

Power Factor:

0.96

Energy Class:

A+

Certifications:

CE & RoHS

Dimmable:

No

Size:

Ø(29x32)x1200 mm

IP Protection:

IP44

Light Source:

SMD2835

Colour Temp:

Pink

Multi-Voltage:

85-265V AC

Material:

Aluminium / PC

Power:

20 W

Frequency:

50-60 Hz

Number of LEDs:

100

Voltage:

AC 220-240V

Lumens:

1600 lm

Working Temperature:

-20ºC ~ 50ºC

Lens Type:

Frost

Screw:

T8

Intensity Level:

87 mA

LED Performance:

80 lm/W

CRI:

80

Length:

1200 mm

Special:

Butchers

Warranty:

5 Years



T8 LED Tube Installation

How to connect an LED tube with one side connection eliminating Ferromagnetic/Electronic ballast

Connecting these tubes requires the re-wiring of the fluorescent lamp as follows: The ballast, the starter and the two mains cables are removed and plugged directly into the two pins at one end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the ballast and starter.

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tubes one-side with LED starter Ferromagnetic/Electronic ballasts

Ferromagnetic fluorescent tube systems have the starter positioned outside the ballast. Alternatively, it is possible to install the LED tubes using the LED starter (included in the product). The connection of these lamps are simple, you only need to change the starter for a LED starter, the fluorescent tube for the LED tube, modify a connection and remove the capacitor* (if available, part1.b).

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 1.b
Remove the capacitor.

LED Tube Installation - Part 1.b

Part 2
Connect Ballast and Led Starter.

LED Tube Installation - Part 2

Part 3
Replace the starter with the LED starter and the fluorescent tube with the LED tube. Turn on and check that your new LED tube lights up.

LED Tube Installation - Part 3

How to connect LED tube with two-sided connection eliminating Ferromagnetic/Electronic ballast

Connecting these lamps requires the re-wiring of fluorescent lamp as follows: Remove the ballast, and the starter, and connect the two power cables directly to one of the two sockets at each end of the tube.

Part 1
Turn off the power, checking that no electrical current is flowing.

LED Tube Installation - Part 1

Part 2
Remove the fluorescent tube, join the two wires that feed into the ballast in the same contact and remove the starter (by cutting one of the starter wires, the starter is completely annulled).

LED Tube Installation - Part 2

Part 3
Connect the PHASE (brown, black or grey wire) to a pin (1 of the 2 metal studs) at one end of the lamp holder and the NEUTRAL (blue wire) to the other pin at the same end of the lamp holder. Insert the LED tube with the end indicated by a label into the wired lamp holder. Turn on and check that your new LED tube lights up. Congratulations, you are using half as much electricity as 5 minutes ago!

LED Tube Installation - Part 3
